MTi-2 VRU

The MTi-2 is a self-contained vertical reference unit.

Request a quote

Request a quote

An industry-leading development platform

Calibrated data

Calibrated data


The MTi-2 is a self-contained vertical reference unit (VRU) featuring sensors that provide calibrated data on the rate of turn, the acceleration, and the magnetic field – all in 3D.

Sensor fusion algorithms

Sensor fusion algorithm

A sensor fusion algorithm computes 3D orientation data based on a gravity reference frame: drift-free roll, pitch, and accurate, unreferenced yaw.

smallest-grade-form-factor

Smallest industrial grade form factor

As part of the MTi 1-series, it is among the smallest of its kind available, with each module measuring only 12.1 × 12.1 mm and weighing <1 g.

A huge upgrade for a minimal in-house investment

Comprehensive, all-in-one solution

Suitable for a wide range of (embedded) applications, the MTi-2 is part of the MTi 1-series. It’s a comprehensive, all-in-one solution that eliminates the need for you to design your own system and incorporate separate gyroscopes, accelerometers and other sensors.

Contact us for information →

Specifications

Sensor fusion performance

Roll, pitch
0.5 deg RMS
Yaw/heading
unreferenced, low drift
Position
Strapdown Integration (SDI): Yes

Sensing components

Gyroscope
Standard full range
2000 deg/s
In-run bias stability
6 deg/h
Noise density
0.003 °/s/√Hz
Accelerometer
Standard full range
16g
In-run bias stability
40 µg
Noise density
70 µg/√Hz
Magnetometer
onboard

System specifications

Mechanical
IP-rating (equivalent)
IP00
Dimensions
12.1 × 12.1 × 2.55 mm
Weight:
0.6 g
Electrical
Input voltage
2.8 to 3.6 V
Power consumption (typ.)
<100 mW @ 3 V
Interfaces / IO
Interfaces
UART, SPI, I²C
Protocols
Xbus
Output frequency
Up to 1 kHz
Download the full MTi-2 VRU specifications ->

Complete and detailed specifications are available at mtidocs.xsens.com



This is a popup heading

This is subtext for popup

Free to download MT Software Suite

The MT Software Suite gives you easy access to the MTi-2 and contains a specially developed, easy-to-use graphical user interface, as well as drivers for various operating systems. It also offers many other useful tools, for example source code and documentation.

The suite comes with complete documentation. Of course, you can also always contact our technical support staff if you have questions.

Download MT Software Suite

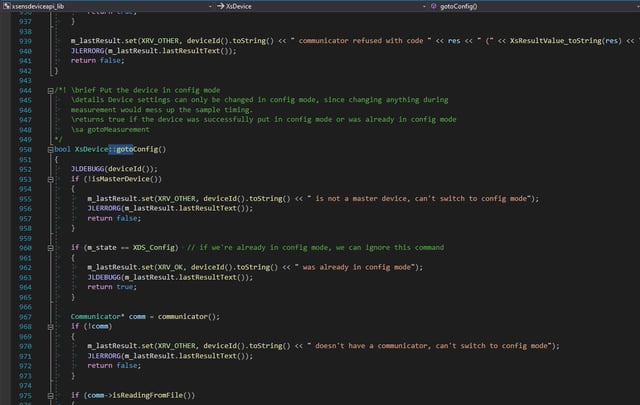

code-screenshot-gotoconfig-1-3

The MT Software Suite includes different software programs, such as:

MT Manager (GUI)

MT Manager (GUI)

This provides you with easy access to all the functions of your MTi from the comfort of your office. MT Manager enables recording and playback of data, real-time data viewing, including graphs, and easy configuration of settings.

MT SDK

MT SDK

This program is for self-developing your software to communicate with our sensor, including: programming examples for C, C++, C#, MATLAB, Python, ROS, and Nucleo/STM boards.

Magnetic Field Mapper

Magnetic Field Mapper

Magnetic Field Mapper (MFM) is a calibration tool for conducting magnetic calibration, available as GUI for Windows and as SDK.

Keeping a boat still onmoving water

A crucial role in this platform is played by an MTi-2 motion tracker from Xsens, providing real-time measurements of roll and pitch to enable the HamiltonJet system to fix the position of a vessel on the water.
