Xsens Avior IMU

The Xsens Avior is our highest-performing IMU with an OEM form factor.

Request a quote

The new standard in OEM inertial sensors

IMU

The Xsens Avior is our highest-performing IMU with an OEM form factor. It delivers accurate and calibrated inertial sensor data, including angular velocity, acceleration, and magnetic field.​

Compact & Lightweight

The Xsens Avior has a low SWaP-C design - without sacrificing robustness. Ideal for drones, robotics, marine, and mobile mapping - where every gram and millimetre matter.

Flexible integration

Broad system compatibility via UART, with flexible protocol support including RS232, RS422, CAN, and more - all configurable through firmware. OEM form factor for compact or embedded systems.

Contact us for information →

Specifications

Sensor fusion performance

Accelerometer

Calibrated

Gyroscope

Calibrated

Strapdown integration (SDI):

Yes

Sensing components

Gyroscope

Standard full range

±300 deg/s

In-run bias stability

8°/h

Noise density

0.004 °/s/√Hz

Accelerometer

Standard full range

±8 g

In-run bias stability

15 µg

Noise density

15 µg/√Hz

Magnetometer

onboard

System specifications

Mechanical

IP-rating (equivalent)

IP51

Dimensions

36.8×40×15.7 mm

Weight

35.2 grams

Electrical

Input voltage

3.2 V – 5.1 V

Power Consumption

300mW (typical)

Interfaces / IO

Interfaces

UART, SPI, I2C, CAN (RS232, RS422 with Xsens Avior DK or external transceiver)

Protocols

Xbus, ASCII (NMEA), CAN

Output frequency

Up to 2kHz, 400Hz SDI

Download the full Xsens Avior IMU specifications →

Complete and detailed specifications are available at mtidocs.xsens.com



Free to download MT Software Suite

The MT Software Suite gives you easy access to the Xsens Sirius AHRS and contains a specially developed, easy-to-use graphical user interface, as well as drivers for various operating systems. It also offers many other useful tools, for example source code and documentation.

The suite comes with complete documentation. Of course, you can also always contact our technical support staff if you have questions.

Download MT Software Suite

The MT Software Suite includes different software programs, such as:

MT Manager (GUI)

This provides you with easy access to all the functions of your Xsens Sirius module from the comfort of your office. MT Manager enables recording and playback of data, real-time data viewing, including graphs, and easy settings configuration.

MT SDK

This program is for self-developing your software to communicate with our sensor, including programming examples for C, C++, C#, MATLAB, Python, ROS, and Nucleo/STM boards.

Magnetic Field Mapper

Magnetic Field Mapper (MFM) is a calibration tool for conducting magnetic calibration, available as GUI for Windows and as SDK.

Choose the option that works best for you

Buy a development kit

If you want to work with the Xsens Avior IMU for the first time, we recommend getting started with the Xsens Avior Starter Kit.

Learn about the benefits ->

Purchase at a local channel partner

You can purchase an Xsens Avior IMU via any of our resellers in or near your country or through an online catalogue.

Find your distributor →

Request a quote

For any final questions or comparisons, feel free to contact our product support team.

Request a quote →

Other IMU products

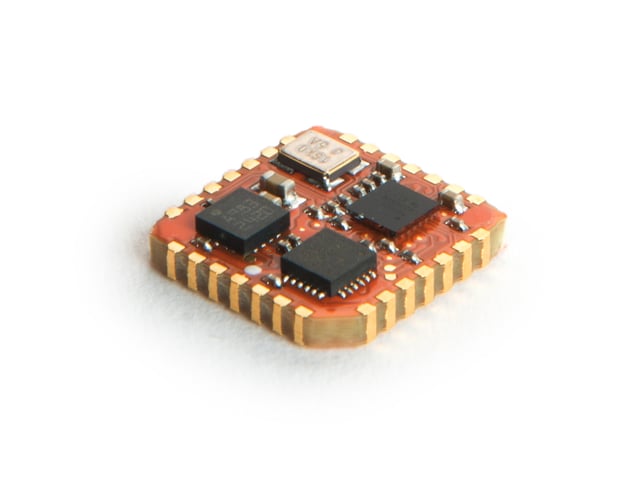

MTi-1 IMU
