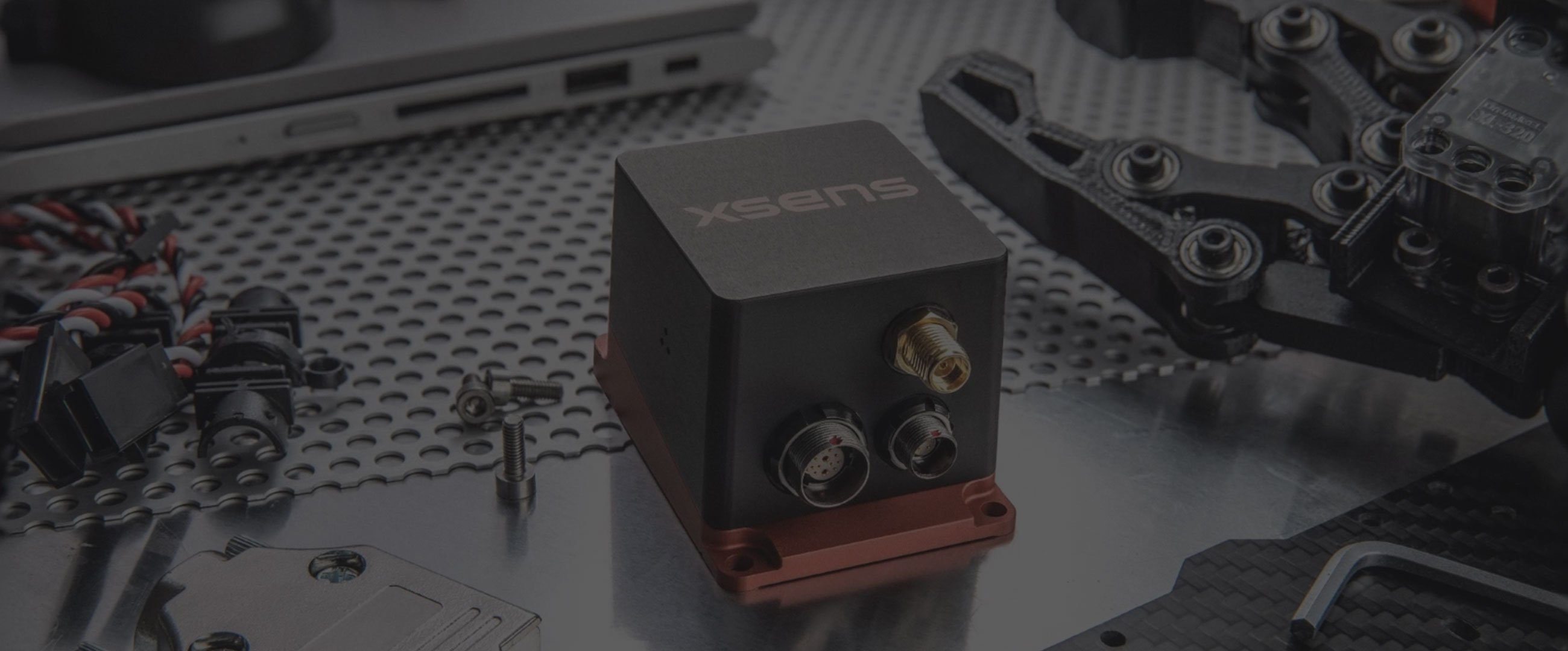

MTi-670G GNSS/INS

The MTi-670G meets the highest standards in miniature GNSS-aided orientation sensors.

Request a quote

Request a quote

An industry-leading development platform

Internal GNSS receiver

Internal GNSS receiver

The MTi-670G combines orientation data with position data supplied by an internal GNSS receiver.

Integration icon (small)

Easy to integrate

The MTi-670G is part of the MTi 600-series. It is an all-in-one navigation solution, lightweight and robust. It is also highly flexible, with native CAN support.

Contact us for information →

Specifications

Sensor fusion performance

  • Roll, pitch 0.2 deg RMS
  • Yaw/heading 0.8 deg RMS
  • Position 1 m CEP¹
  • Velocity 0.05 m/s RMS

Sensing components

  • Gyroscope
  • Standard full range 2000 deg/s
  • In-run bias stability 8 deg/h
  • Noise density 0.007 °/s/√Hz
  • Accelerometer
  • Standard full range 10 g
  • In-run bias stability 10 (x,y) 15 (z) µg
  • Noise density 60 µg/√Hz
  • Magnetometer onboard
  • Barometer onboard
  • GNSS receiver
  • Brand u-blox
  • Model ZED F9

System specifications

  • Mechanical
  • IP-rating (equivalent) IP68
  • Dimensions 56.5 × 40.9 × 36.75 mm
  • Weight 98 g
  • Electrical
  • Input voltage 4.5 to 24 V
  • Power consumption (typ.) <1 W
  • Interfaces/IO
  • Interfaces CAN, RS232
  • Protocols Xbus, ASCII (NMEA) or CAN
  • Output frequency Up to 2 kHz, 400 Hz SDI
Download the full MTi-670G GNSS/INS specifications ->

¹Depending on GNSS conditions
complete and detailed specifications are available at mtidocs.xsens.com



This is a popup heading

This is subtext for popup

Free to download MT Software Suite

The MT Software Suite gives you full and easy access to your MTi-670G. It contains a specially developed, easy-to-use graphical user interface, as well as drivers for various operating systems.

The suite comes with complete documentation. Of course, you can also always contact our technical support staff if you have questions.

Download MT Software Suite
code-screenshot-gotoconfig-1-3

The MT Software Suite includes different software programs, such as:

MT Manager (GUI)

MT Manager (GUI)

This provides you with easy access to all the functions of your MTi from the comfort of your office. MT Manager enables recording and playback of data, real-time data viewing, including graphs, and easy configuration of settings.

MT SDK

MT SDK:

This program is for self-developing your software to communicate with our sensor, including programming examples for C, C++, C#, MATLAB, Python, ROS, and Nucleo/STM boards.

Magnetic Field Mapper

Magnetic Field Mapper:

Magnetic Field Mapper (MFM) is a calibration tool for conducting magnetic calibration, available as GUI for Windows and as SDK.
