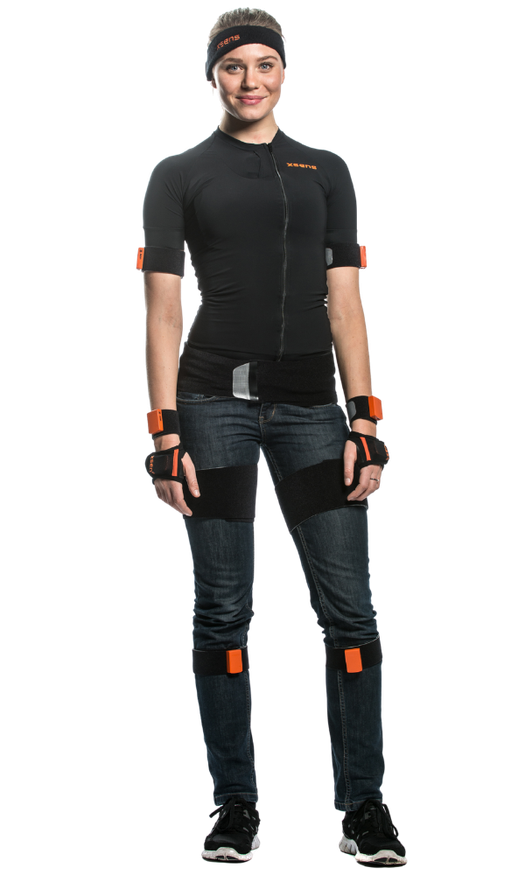

Xsens Awinda

An easy-to-use wireless motion capture system
for a wide variety of applications.

Motion seamlessly captured

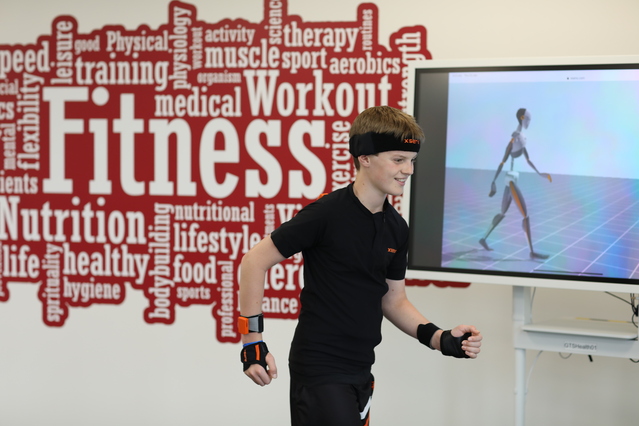

Xsens Awinda is a motion capture system with 17 wireless sensors fitted on the body with adjustable straps. It supports fast, easy, and reliable motion capture, making it ideal for regular motions and multiple actors using the same setup. With a range of up to 50 m, it can be used in a wide variety of applications, including occupational health and safety, rehabilitation and injury prevention, animation, entertainment, biomechanical science, and human factor research. Plus, it can be worn over clothing.

Inertial motion capture requires sensors attached to the body to capture movements. But that’s only half of it. You need both hardware and software for a full motion capture system.

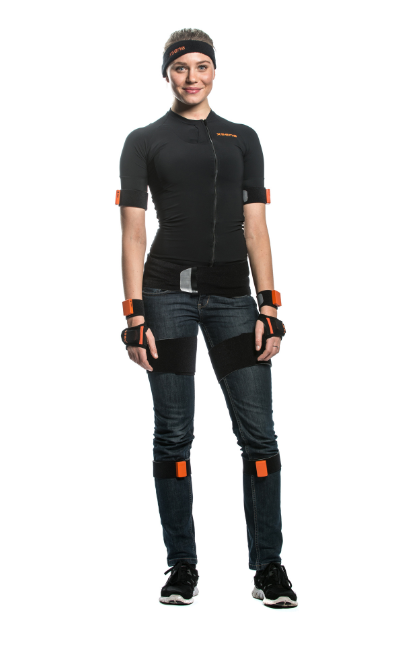

Wireless motion capture, built for flexibility

Fast to set up, easy to use, and built for reliable motion capture across diverse environments.

Update rate 60 hz
Magnetic immunity Yes
Battery life 12 hrs
Charging Charging station
Wireless range 50 m
Wireless communication Radio protocool (Awinda protocool)
Latency 30 ms
On-body buffering 30 sec
Wireless datalink Awinda recording and docking station
Sensors 17 wireless sensors (+1 prop sensor)
Casing Sturdy neoprene case
Finger tracking integration Manus & StretchSense
Sizing Full body strap set + 3 Awinda t-shirts (S, L, XXL)
Hardware synchronization Includes, via BNC connectors Third party e.g. EMG sensors, force plates (with Awinda station)
