HTC VIVE Ultimate Tracker - Integration

Improve how motion is positioned in space

Xsens delivers high-quality full-body motion capture that works across a wide range of environments and workflows. With the HTC VIVE Ultimate Tracker integration, you can further improve how motion is positioned in space, especially when alignment and character and object interaction need to be precise.

Hands align more accurately with objects, feet stay grounded, and movement remains consistent across environments and elevation changes, both in real-time and during post-processing.

This supports more reliable results for animation, robot training, and simulation.



Improve animation workflows with positional tracking

Built for animation, virtual production, and live performance

Characters interact with props, environments, and each other. The HTC VIVE Ultimate Tracker integration adds positional consistency to motion data, supporting better alignment across takes, real-time workflows, post-production, and elevation changes.

Key capabilities

  • Add positional reference
    Align characters with props, environments, and other performers.
  • Improve interaction-heavy animation
    Clean up hand contact, prop interaction, and character-to-character alignment.
  • Get more reliable real-time results
    Improve stability for previs, virtual production, and live animation.
  • Adapt the setup without optical occlusion
    Place trackers on performers, props, or in the environment.
Ultimate Tracker Website Image with Xsens

Motion capture setup for contact-rich robot workflows

Humanoid robots operate in relation to real-world environments.

The HTC VIVE Ultimate Tracker integration adds an extra layer of spatial consistency of motion data, supporting more accurate positioning and interaction in real-world tasks.

Key capabilities

  • Add spatial reference
    Reinforce positioning in critical interaction points such as end-effectors, body alignment, or contact areas.
  • Capture contact-rich motion
    Improve how motion reflects object manipulation and subject interaction.
  • Customize the setup to your capture scenario
    Place trackers on body segments, objects, or in the environment depending on the task.

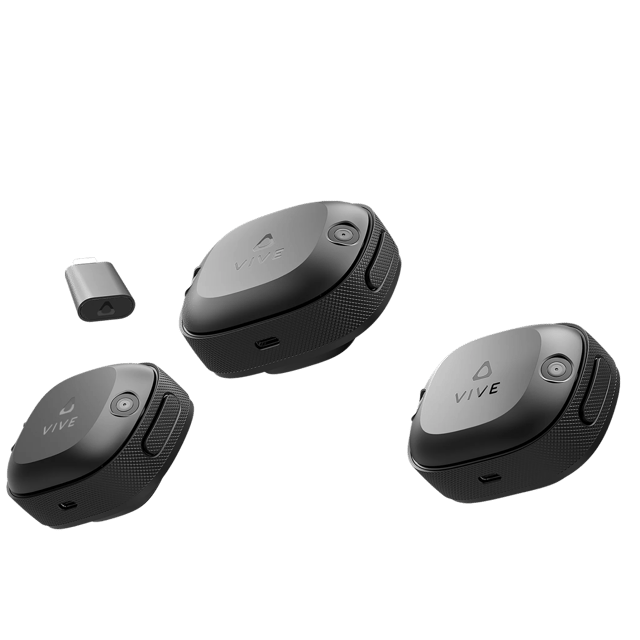

HTC VIVE Ultimate Trackers 7

How positional tracking works

Hybrid tracking combining inertial motion capture and 6DoF positional reference

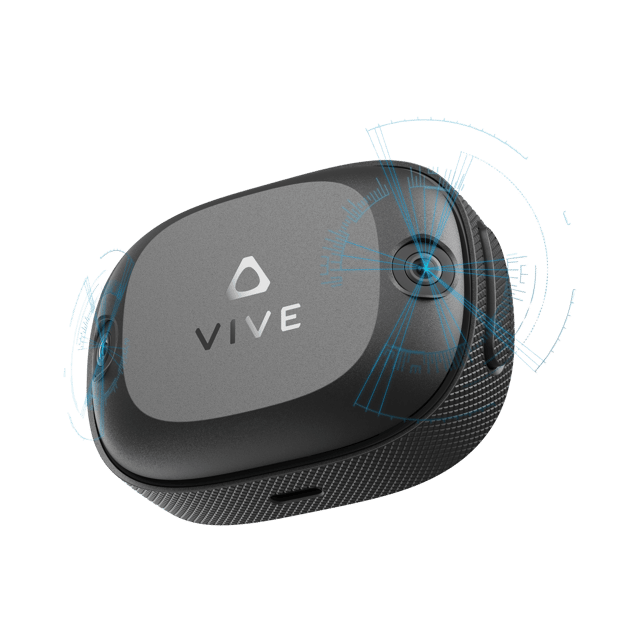

The HTC VIVE Ultimate Tracker uses inside-out tracking with onboard wide-FOV cameras and computer vision algorithms to estimate its 6DoF pose. By mapping and localizing within its environment, the tracker determines its position and orientation without external base stations.

When integrated with Xsens technology, this positional data is fused with inertial motion capture from the Xsens system. Xsens provides high-fidelity full-body kinematics from IMU data, while the Ultimate Tracker adds absolute positional reference points within the capture space.

This sensor fusion approach improves global positioning and reduces drift, especially where alignment with environments, objects, or contact surfaces is required. Trackers can be placed on body segments, props, or fixed reference points to define spatial constraints and interaction zones.





HTC VIVE Ultimate Trackers 3

Add the Ultimate Tracker to your Xsens setup

The HTC VIVE Ultimate Tracker integration is designed as an add-on to the Xsens workflow. Teams can use the Ultimate Tracker to add positional reference where their capture setup needs it most, from robot training and validation to animation, virtual production, and simulation.

Ultimate Trackers are available through the official HTC VIVE website. For availability, product options, and purchasing details, visit the official HTC VIVE Ultimate Tracker page. For setup instructions, view the Xsens setup documentation.

View VIVE Ultimate Tracker on HTC VIVE
https://www.vive.com/us/accessory/vive-ultimate-tracker/

View setup documentation
https://base.xsens.com/s/article/HTC-VIVE-Ultimate-Tracker-Setup

HumanoidRobotTraining-Xsens

See how it fits your workflow

Tell us how your team plans to use the HTC VIVE Ultimate Tracker integration with Xsens. Teams working in humanoid robot training, animation, virtual production, and simulation can use positional tracking to improve alignment, interaction, and real-time motion data.

Share a few details about your workflow, and our team will follow up with guidance on integration, tracker placement, setup, and next steps.

What we can help with

  • Guidance for robotics and entertainment workflows
  • Advice on tracker placement and setup
  • Next steps for adding positional reference to Xsens
