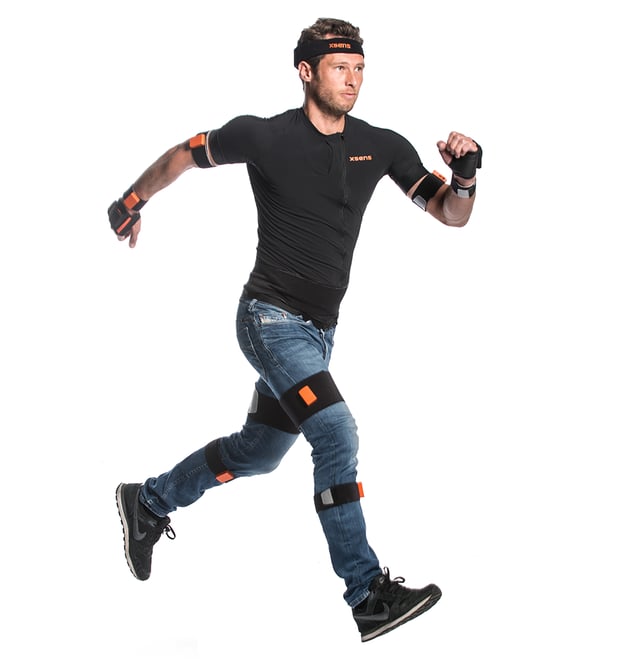

Don’t let the name fool you
Xsens Awinda Starter delivers more than you might expect. The lightweight sensors can be worn over normal clothes and track orientation and motion with accuracy, sending data to the software for real-time visualization and analysis.
You get a maximum range of 25 m and a maximum frame rate of 60 Hz in a setup that is easy to use and comfortable to wear.
It is a complete inertial mocap solution that includes both hardware and software.
Request pricing

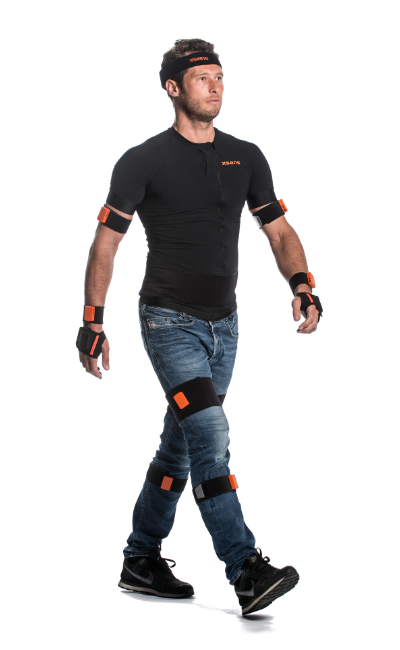

Fast, easy, reliable
Quick to set up. Easy to use. Built for consistent results.
- Magnetic immunity Yes
- Update rate 60 Hz
- Wireless range 25 m
- Battery life 12 hrs
- Charging USB cables for Awinda sensors, plus a 6-port USB charger
- Wireless communication Radio protocol (Awinda protocol)
- Wireless datalink Access point
- Latency 30 ms
- On-body buffering 30 sec
- Sensors 17 wireless sensors

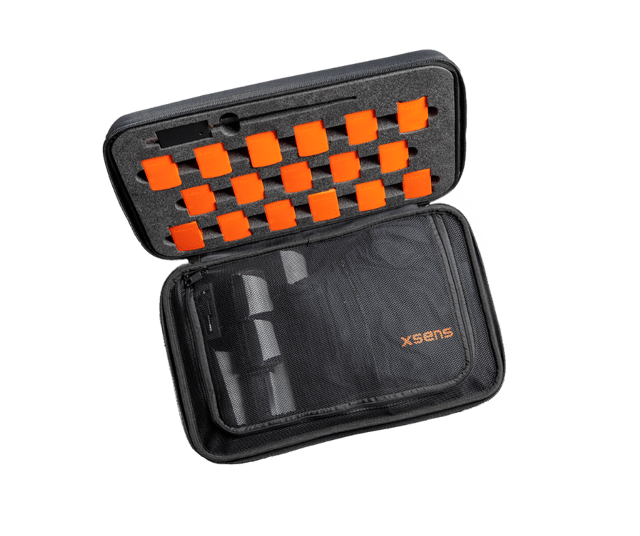

- Casing Sturdy neoprene case
- Finger tracking integration Manus & StretchSense
- Sizing Full body strap set + 3 Awinda t-shirts (S, L, XXL)
- Hardware synchronization Third party – e.g. EMG sensors, force plate; optional with additional Awinda station
The Most Efficient Way to Animate Your Characters
Capture anywhere
Operate without a fixed setup and record motion reliably in real-world environments.
Robust and accurate
Built for consistent tracking and dependable results.
Clean, reliable data
Consistent, accurate motion data ready for analysis without extensive post-processing
Motion capture applications
Game development
Simplify the production of animated characters for (indie) games and in-game cinematics.
VFX & Film
Capture lifelike performances and integrate them directly into your cinematic workflow.
Virtual production
Combine the physical and the virtual world. Build avatars through motion capture.
VTube & Streaming
Record or stream an animated version of someone for YouTube, Twitch, and other platforms.
Humanoid robots
Teach your robots to move like humans with precise and reliable motion data ready for AI/ML training and teleoperation.
Biomechanical research
Capture peer-reviewed motion data ready for deep analysis and streaming into 3rd party software.
Occupational health & safety
Quantify ergonomic risk, validate interventions, and document compliance using wearable motion capture.
.webp?width=640&name=Link%20sports%20(1).webp)
Sports performance
Capture athletes' movements on the field, track, and pitch to analyze their technique, points of improvement, and risks to maximise performance.
Xsens motion capture software
Xsens Animate
Xsens Animate streams or exports motion capture data for entertainment applications directly to your 3D software.
Xsens Analyze

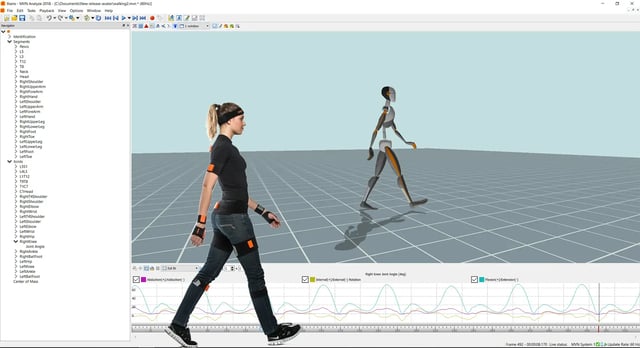

Xsens Analyze visualises movement data live, streams, and exports into 3rd party analysis software.
Get in touch
And learn about how Xsens motion capture can be a perfect fit for your application.
