MVN Analyze

Whether you are an expert in biomechanics, sports science, ergonomics, or rehabilitation, what you want is reliability and accuracy of your data. Introducing Xsens MVN Analyze, our proprietary full-body human motion capture system.


everywhere

Everywhere

Use Xsens MVN Analyze everywhere and get lab-quality data in the field. The system is easily set up, calibrated, and modified, while its intuitive interface and real-time visualization features help you to focus on what is important in your work or research.

magnetic immune

Magnetic Immunity

Experience the benefits of full magnetic immunity in all conditions. Our proven biomechanical model and sensor fusion algorithms ensure the highest quality motion analysis. Even in the most challenging magnetically disturbed environments.

unbelievable data

Validated Data

Xsens MVN Analyze offers validated, peer-reviewed data and features integrations with all market leading software packages, offering you the highest quality in motion capture and analysis.

Overview

Lab quality data in field conditions

Xsens MVN Analyze ensures real-time, reliable and accurate human motion analysis. Xsens’ tiny motion trackers are able to capture the smallest twitches to high dynamic movements on-body ensuring full 3D motion analysis.

The proven MVN Analyze biomechanical model and sensor fusion algorithms ensure the highest quality motion analysis, even in challenging magnetically disturbed environments.

Do you want to know more about MVN Analyze and all its possibilities, don't hesitate to contact us.

I would like to know more

Hardware

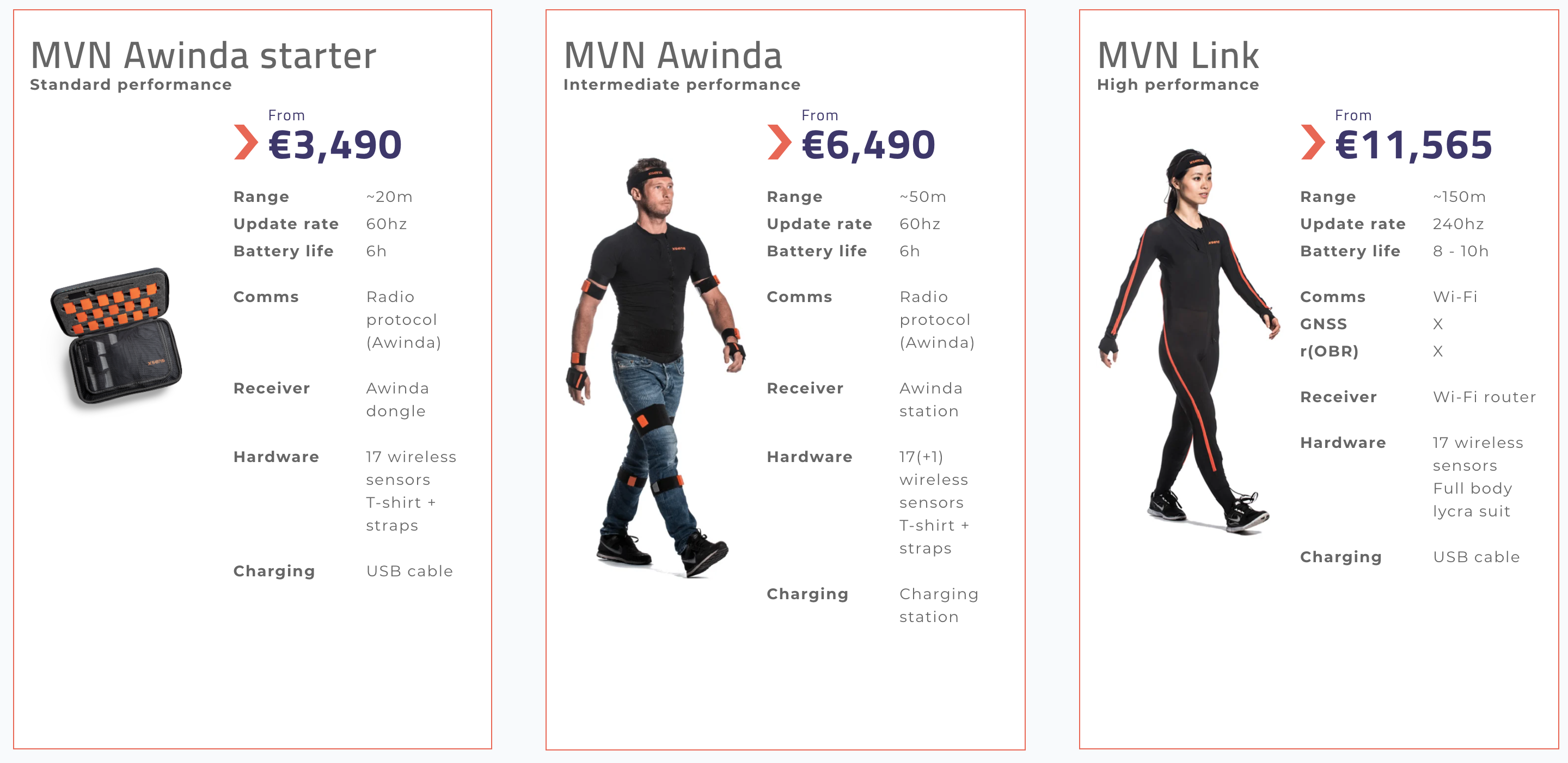

The Xsens MVN product line has two hardware versions: MVN Link and MVN Awinda.

MVN Awinda uses 17 wireless sensors which are fitted on the body with adjustable straps, wheres with MVN Link the wired  sensors are fitted on the body with a Lycra suit.

Both systems have their own specific characteristics, compare the two using the overview below and find out which systems fits your needs best.

Already familiar with our products and want to get in touch with us? Please contact us

I want MVN Analyze

img_1
Artboard 2

MVN Awinda

Quick setup, lab quality data

The MVN Awinda allows for fast, easy and reliable motion capture. The adjustable straps, quick setup time and portabilty make the MVN Awinda ideal for use in groups and education.
Artboard 1

MVN Link

Bigger range, lab quality data

The MVN Link operates on the same 17 trackers as the MVN Awinda, but the Lycra suit ensures even more accurate data recording and allows for a bigger recording range. Additionally, the MVN Link features full GNSS support.

I would like to request a quote

Xsens MVN Analyze is optimized for use in research, sports science, ergonomics and rehabilitation. Delivering validated data in heavily magnetically distorted environments. Please let us know how we can help you and we will be in touch.

cta-analyze-2
MVN 2019-2

Our best software yet

MVN Analyze 2019.2 features full GNSS (GPS) support, the MVN system can now track users partaking in activities that do not feature defined foot contact such as cycling, horse riding, skiing and skating. Enjoy full GNSS support, including the well-known American Global Positioning System (GPS), as well as Russia’s GLONASS and Japan’s QZSS.

Download the latest software

Manus Finger Tracking

Xsens offers true full body performance capture using Manus VR finger tracking for MVN Link and MVN Awinda. We provide native support for Manus VR gloves directly into Xsens’ MVN Analyze motion capture software.

The Prime Xsens is a glove designed for integration into an Xsens motion capture suit, to complete the hand with finger data on their IMU suits. Xsens is the leading innovator in 3D motion tracking technology and products. The Xsens suit, in combination with the Manus Prime Xsens enables seamless interaction in applications such as 3D character animation, motion analysis, and industrial control & stabilization.

You can find more information on the following dedicated website:

Manus VR Gloves
manus-xsens
MVN-Animate-demovid

See what Xsens MVN can do for you

Before you get started, please have a look at this video and learn everything you need to know about Xsens MVN Analyze in less than 10 minutes. This video will present everything related to the Xsens MVN Analyze like Motion Capture software, hardware, magnetic immunity, HD reprocessor etc.

MVN Analyze Software

Xsens MVN Analyze features a scalable biomechanical model, allows up to four hardware setups, and supports different calibration routines.

The software package offers real-time 3D animation, graphs, data streaming, and video. MVN Analyze output supports joint angles, segment kinematics, segment global positions, and extensive sensor data.

The software has built-in time code and remote control plugins, handles data rates up to 158 Mb/min, and exports to formats such as ASCII (HTML), C3D, BVH, MVNX, BX, and movie containers like AVI and M4V.



Download the latest software

analyze-walking
HD-reprocessing

HD Reprocessing

Data accuracy and reliability are essential to your work. The HD Reprocessor raises both data quality and consistency by extracting additional information from your existing data set.

Processing data over a larger time window gives you optimal and consistent data on the position and orientation of each segment.

Try MVN Analyze

Synchronization

MVN Analyze and Awinda Sync station allow for easy synchronization with TTL pulse-based third-party systems.
MVN Analyze also connects to different musculoskeletal modeling systems. More information and additional content on synchronization are available in our download section.



Download the latest software

synchronization
Radiant-background

Integrations

Enjoy the superior integration of Xsens MVN Analyze with all major biomechanics and ergonomics packages, including:

  • D-LAB
  • C-Motion
  • Siemens Jack PLM Software
  • ViveLab Ergo
  • Dassault Systèmes
  • Unity

Integrations overview

I have a question

Are you interested in MVN Analyze and are you looking for additional information? Contact Xsens to get in contact with one of our product specialists.

cta-analyze

Customer Cases

Team Sunweb

Read how Xsens and OCON helped Team Sunweb get their best bike fits. Team Sunweb now has a unique advantage: astonishingly precise bike fittings performed by OCON using Xsens MVN Analyze, which fit exactly to their riders’ physiology. This helps riders avoid injuries and achieve world-beating speeds in the process.

Read this customer case

Exeter Chiefs

Read how rugby team the Exeter Chiefs uses Xsens MVN Analyze. “Using a marker-based motion capture system required a large number of sensors to be stuck on each player. This leads to a minimum of 10 minutes in preparation time before entering the motion capture lab. With the Xsens MVN, adjusting the sensors, collecting the limb lengths and then completing the calibration is a lot quicker and a lot less painful for the players.”

Read this customer case



Handball GK Training

By using Xsens MVN Analyze, Marko Markis (owner of Handball GK Training) is able to reach new heights in handball

Read this customer case

See how Xsens customers are using the MVN Analyze system. You can find more customer cases in the Explore section
