MTi-100 IMU


About

The MTi-100 is our highest-performing Inertial Measurement Unit (IMU). It provides calibrated data on the 3D rate of turn, 3D acceleration and 3D magnetic field. The superior, vibration-rejecting gyroscopes – part of the entire MTi 100-series – guarantee high-quality acceleration and orientation data, even in challenging environments. The MTi-100 is ruggedly built, with a protective, anodized, IP67 waterproof aluminum housing, waterproof connectors, and special studs for easy mounting and aligning. This all-in-one IMU supports optimized temperature calibration, while offering configurable output settings for synchronization with any third-party device. Like the other modules in this series, the MTi-100 can be recognized by its dark-grey/black base plate and the small barometer holes on one side of the casing.

The MTi-100 is MIL-STD 202 certified (Vibration).

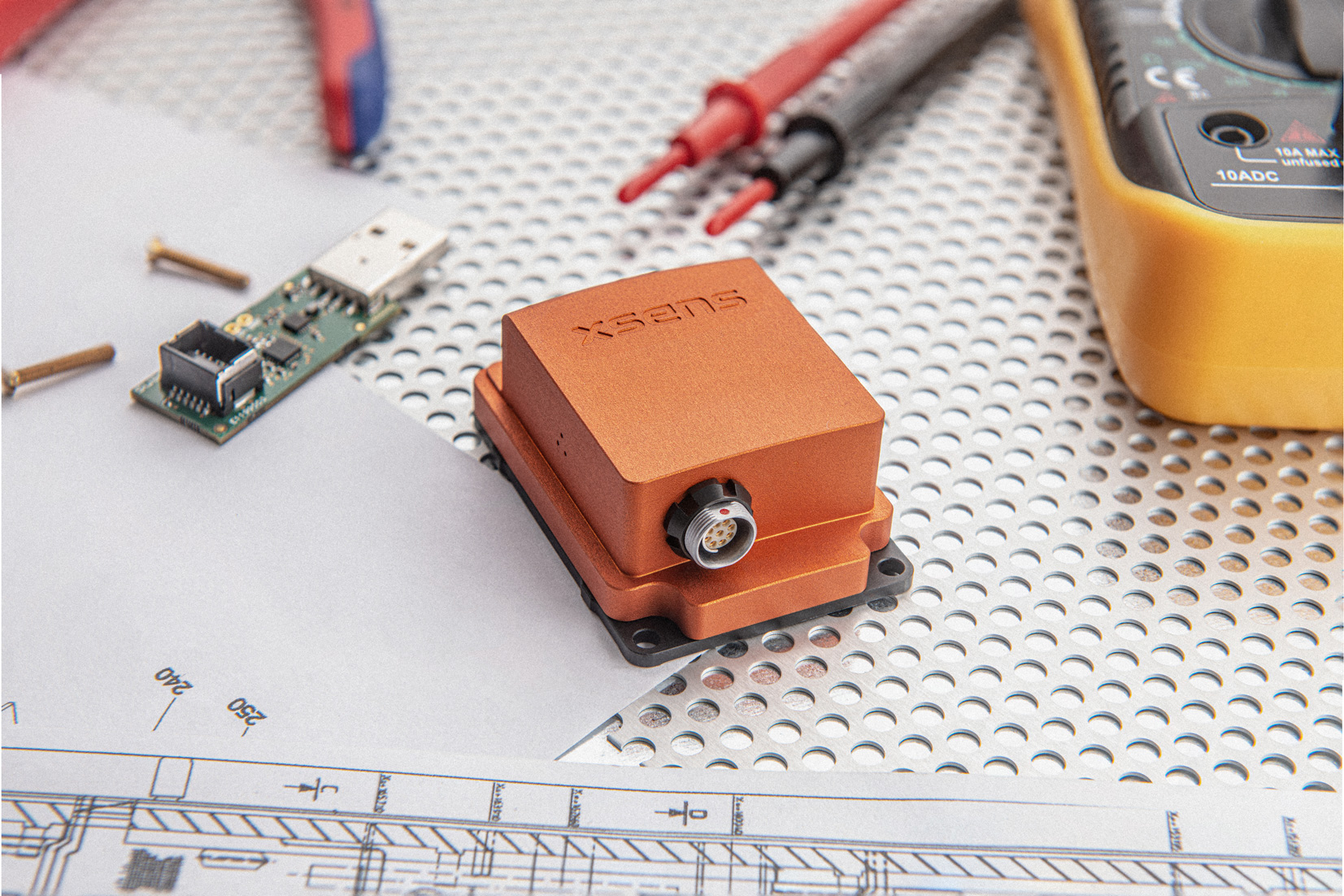

MTi-100-1

Technical specifications

IMU Performance

  • Accelerometer
    Calibrated
  • Gyroscope
    Calibrated
  • Strapdown Integration (SDI)
    Yes

Sensing Components

  • Gyroscope
    Standard full range: 450 deg/s
    In-run bias stability: 10 deg/h
    Noise density: 0.01 º/s/√Hz
  • Accelerometer
    Standard full range: 20g
    In-run bias stability: 15 µg
    Noise density: 60 µg/√Hz
  • Magnetometer
    Available

System Specifications

  • Mechanical
    IP-rating: IP67
    Dimensions: 57 x 41.90 x 23.60 mm
    Weight: 55 gr
  • Electrical
    Input voltage: 3V3, 4.5V-34V
    Power consumption: 520 mW
  • Interfaces/IO
    Interfaces: USB, RS232, RS422, UART
    Protocols: Xbus
    Output frequency: up to 2kHz
code-screenshot-gotoconfig-1

MTi-100 software

With our MT Software Suite you will get maximum benefit from your MTi-100. The suite contains a specially developed, easy-to-use graphical user interface, complete documentation, and drivers for various operating systems. It also offers example source code and many other useful tools. Among its software programs, you will find:

  • MT Manager (GUI)
  • MT SDK, including programming examples for C, C++, C#, MATLAB, Python, ROS and Nucleo boards
  • Magnetic Field Mapper (MFM) calibration tool, as GUI and SDK

For additional support, our technical support staff is always ready to help.

Documentation

MTi-100 leaflet
MTi 100-series documentation
Go to software page
